NK Series
The NK Series comprises heavy-duty, high-head single-phase pumps adept at handling abrasive materials with minimal wear.
Features
- Air-filled motor for continuous duty
- Terminal board enables voltage reconnect, allowing a change from 110V to 220V on the NK2-15 model
- Semi Vortex Impeller and Synthetic Rubber Wear Plates ensure maximum durability and maintain pump performance
- V-Ring Seal design safeguards the mechanical seal from abrasive particles
- Patented Oil Lifter facilitates lubrication of the seal faces
- Dual Inside Mechanical Seal With SiC faces ensures a longer operational life
Accessoires en option
- TS-304 Float Switch for automatic operation at 110V only
- TS-303 Float Switch for automatic operation at 220V only
- Agitator kits support continuous duty when pumping abrasive materials
- Sand Kit for suspending solids and preventing clogging on NK2-15SK and NK3-22SK
- 2-inch NPT coupling available
Type
Submersible Pumps
Brand
Tsurumi
Power
2-3 hp
Discharge
3 in
Maximum Capacity
211 gpm
Maximum Pressure
85 ft
| Model | Discharge Size (in) | Motor Output (hp) | Diameter (in) | Height (in) | Max Solid Diameter (in) | Weight (lbs) |
|---|---|---|---|---|---|---|
| NK2-15 | 3 | 2 | 9 7/16 | 24 1/2 | 0.334 | 80 |
| NK4-22 | 3 | 3 | 9 7/16 | 24 1/2 | 0.334 | 81 |
| NK3-22L | 3 | 3 | 9 1/4 | 26 1/2 | 0.334 | 90 |
Brochures

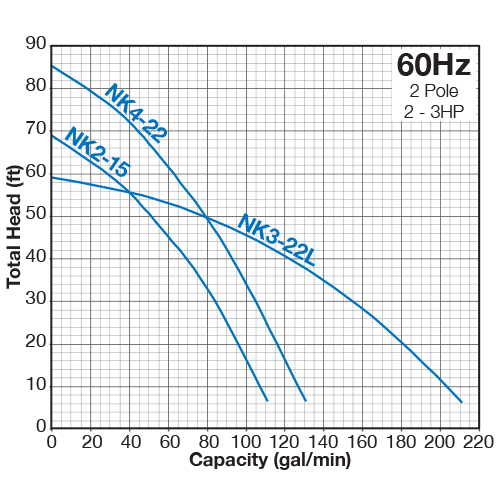

Performance Curves
