U Series
Tsurumi’s U Series pumps excel in addressing challenges posed by solids and stringy materials, making them ideal for small to mid-range applications.
Features
- Semi-vortex cast iron impellers
- Copper-wound motor designed for continuous duty, air-filled, and rated with Class F insulation
- Circle Thermal Protectors (CTP) offering protection against excessive heat build-up, overcurrent, or electrical/mechanical failure
- Sturdy cast iron construction
- Watertight casing
- Discharge bend and parts available separately as a kit.
Type
Submersible Pumps
Brand
Tsurumi
Power
1/2-1 hp
Discharge
2 in
Maximum Capacity
95 gpm
Maximum Pressure
44 ft
| Model | Discharge Size (in) | Motor Output (hp) | Diameter (in) | Height (in) | Max Solid Diameter (in) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 50U21.5 | 2 | 2 | 11 11/16 | 18 3/8 | 1.38 | 66 |
| 80U21.5 | 3 | 2 | 16 9/16 | 19 5/8 | 1.81 | 88 |
| 80U22.2 | 2 | 3 | 20 1/2 | 22 1/8 | 2.2 | 117 |
| 80U23.7 | 2 | 5 | 20 1/2 | 22 1/4 | 2.2 | 132 |
Documentation

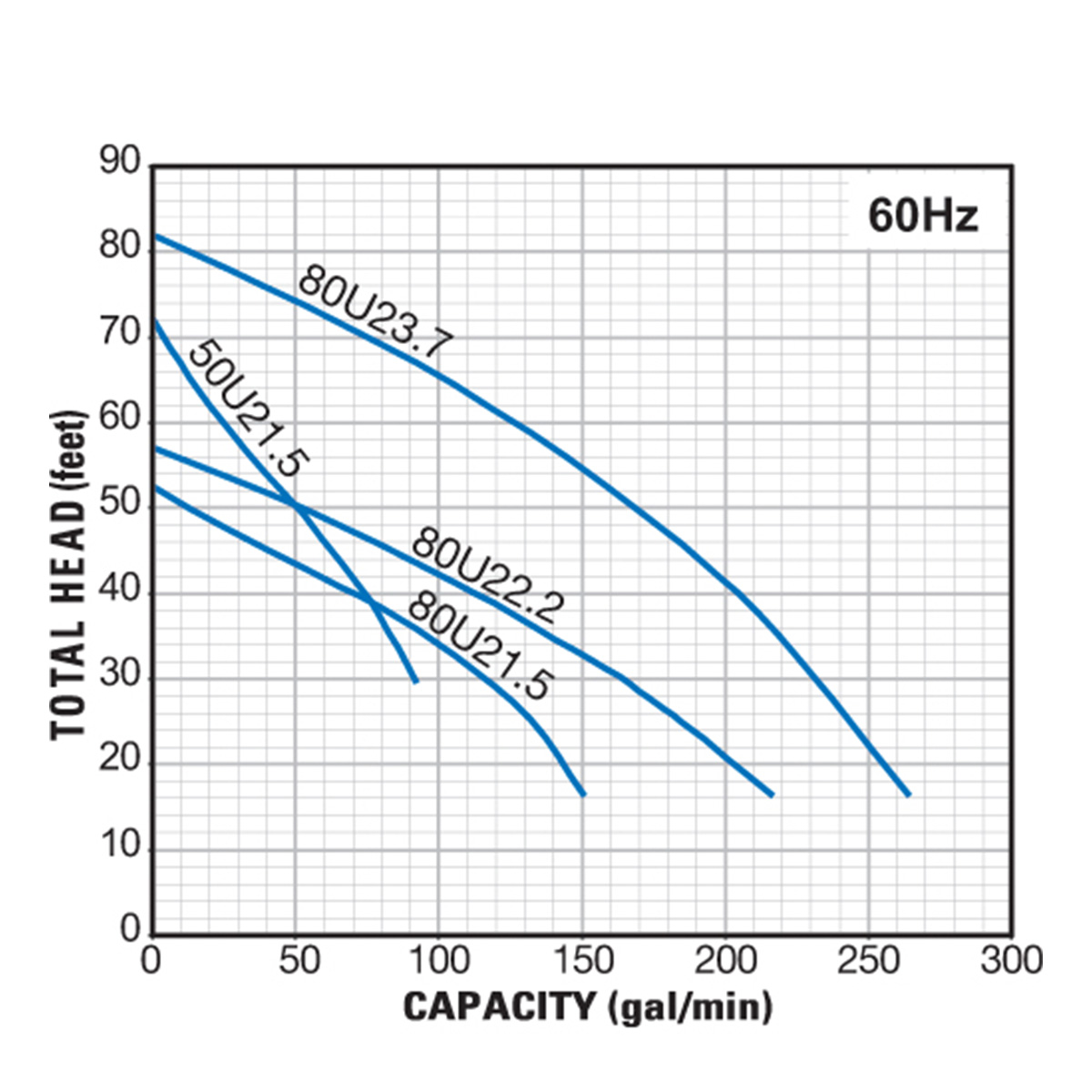

Performance Curves
Dimensional Drawing
Sectional View
