Submersible Pumps
UT(Z) Series
Products
Technical specifications
UT(Z) Series
The UT/UTZ Series sump pumps, constructed from cost-effective cast iron and featuring a semi-vortex submersible design, offer a versatile solution for efficiently transferring wastewater between storage tanks, draining sewage from diverse locations (such as factories, homes, hotels, and restaurants), and pumping water run-off containing solids, thanks to their generous passage capabilities.
Features
- Budget-friendly iteration of the Tsurumi U Series suitable for diverse applications
- Large diameter passage facilitating the handling of liquids with diverse solids
- Automatic operation version featuring floats is available for UTZ models
Type
Submersible Pumps
Brand
Tsurumi
Power
1/2-1 hp
Discharge
2 in
Maximum Capacity
95 gpm
Maximum Pressure
44 ft
| Model | Discharge Size (in) | Motor Output (hp) | Diameter (in) | Height (in) | Max Solid Diameter (in) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 50UT2.4S | 2 | 1/2 | 9 1/2 | 13 3/4 | 1.4 | 31 |
| 50UTZ2.4S | 2 | 1/2 | 9 1/2 | 15 3/4 | 1.4 | 31 |
| 50UT2.75S | 2 | 1 | 9 1/2 | 16 | 1.4 | 31 |
| 50UTZ2.75S | 2 | 1 | 9 1/2 | 18 | 1.4 | 37 |
Brochures

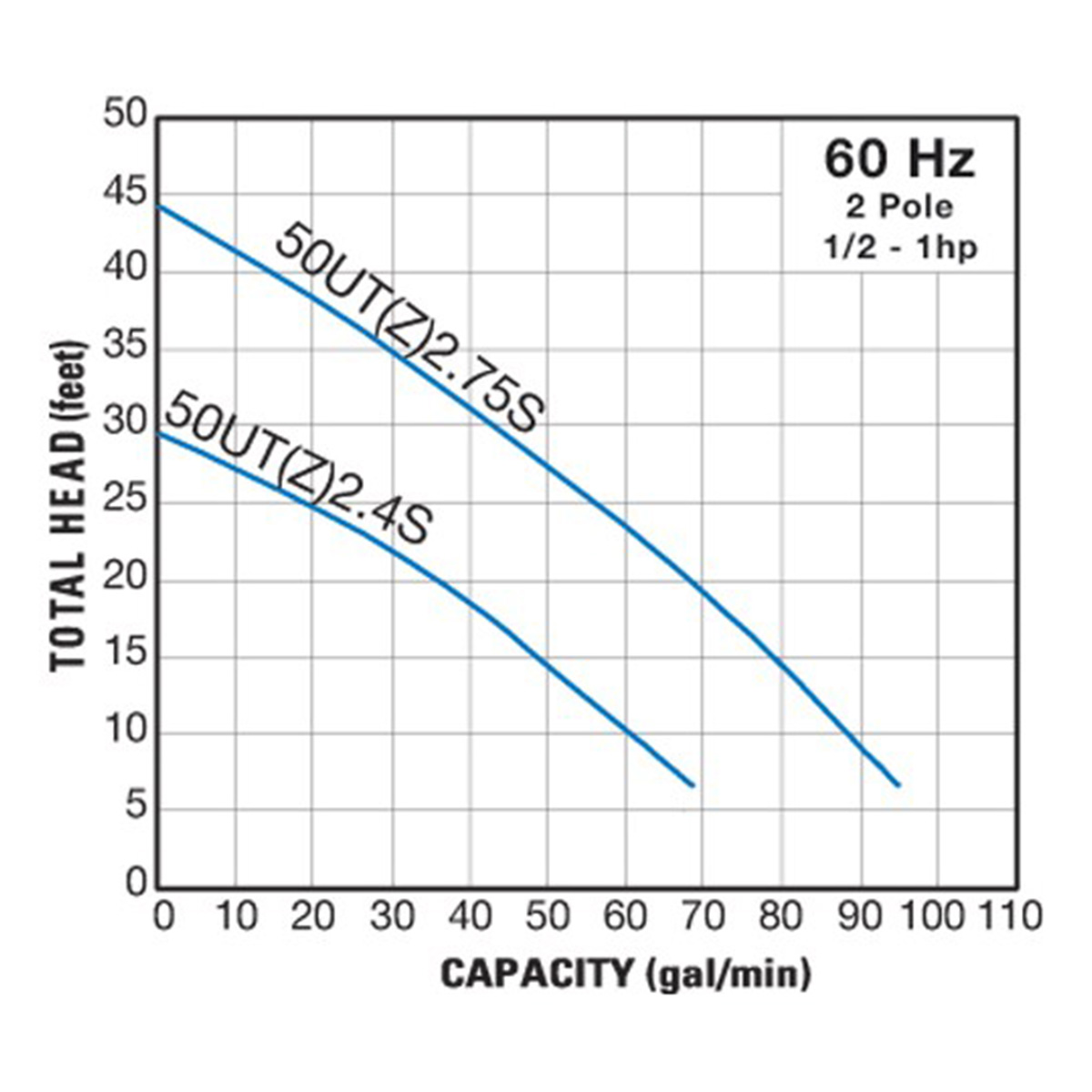

Performance Curves
Dimensional Drawing
Sectional View
